Wish I had another sunny day to get some more up to date barn photos but here are a couple. It's a lot further along now and the fencing is done as well but none of that has been photographed recently. Well pump goes in this week and that's exciting for me since hauling water gets old fast.
Saturday, October 15, 2011
So here's the progress report on the new barn. The goat stalls are finished. These consist of a main stall about 16X10' for day use and next to it a 16X6' stall to put kids in overnight when I'll be milking the does in the morning. These stalls have a removable panel in between them so kids will be able to see their moms and even sleep with just a wire panel between them. If it proves better to have complete separation I have other stalls at the south end of the barn that can be kid overnight stalls. The name of the game with this barn is flexibility so the kid overnight stall has 2 hay mangers placed in such a way that it could be divided in half if need be. Beyond the kid stall there is a row of 4 kidding/lambing stalls and they are created by dividers that are created as needed by dropping 2X6" boards into metal tracks. This means I can have 1 big stall, 2 slightly smaller stalls for 4 individual stalls. Each has it's own gate (or will have when my brother Jeff gets back from sailing his boat south) and the aisle itself will be usable in a pinch for yet another kidding place. Can you tell we were low on room last year?
Here's the kid overnight stall.
Notice that we have yet another style of manger here. Jeff and I designed and built this on the spot starting with a length of 2X6 screwed from the other side as the bottom. We created both sides by taking 3 pieces of 2X6 and sawing one of them diagonally in half to form the slant for each side. Pieces of scrap livestock panel were attached with fencing staples, a piece of shiplap siding provided a handy groove to cover the sharp ends of the top of the wire and provide some height. Strips of shiplap edges covered the other wire edges at bottom and sides. Here's a closer shot:
Notice the peek gap in the stall partitions? It's so that animals can peek in and out to see what's going on. When the dogs are in the center aisle instead of with the goats they'll want to keep an eye on stuff and the goats certainly like to look out to see what's happening.
Outside the main herd stall is a 16X16' run-in shed area. It's got openings to the north and west. Since the wind whips across this field from the north we'll have a sliding barn door to keep the chill out during the cold months. During summer the breezes will help keep everyone cool. The floor of this run-in area is sand and gravel. We'll build some platforms for here and in the stalls. Goats love to jump up on stuff and they especially like to have somewhere to jump up onto when the guardian dogs are feeling frisky and playful. The windows haven't been put in yet. Still waiting on that except for the buck stall which is already occupied by a full grow buck, a full grown wether and 2 young wethers.
Here's the run-in area.
This run-in area is across a center aisle from the sheep run-in area which is designed and built the same way. With long spans of 16' for the walls we had to figure out a system to stabilize the walls. We framed them up and then hammered a 5' piece of conduit pipe and attached the wall to it like this:
We used cedar boards as apron boards along the bottom to keep drafts out. The cedar is resistant to rot of course and can be replaced easily if needed. The sill of the wall is more than 6" off the ground.
Tuesday, October 11, 2011
Friday, October 7, 2011
My brother said it was a pain to make the manger the way he did the first one with the routed out 2X4 so this time we pre-bent the section of panel by screwing one end of a 2X4 to a barn post at floor level with the panel under it. We maneuvered the panel until we had the "bend line" where we wanted it under the 2X4 and then I stood on that (my participation) while he bent the panel for the side bend. We repeated it on the other side and then used large barbed fence staples to attach it to the 2X6 wall. You can see the photos attached.
Here are our ewe lambs from Greener Pastures Farm. They arrived a week or so ago and are settling in nicely. From top to bottom they are named (remember, it's an "L" year for Greener Pasture's Farm!): Lorelei, Lola, Lisette, Lilibeth, Laughter in the Rain, and Lady of the Lake.
Thursday, October 6, 2011
Our pasture system is not a regular rotational grazing system. We've also integrated a medicinal hedgerow and some sylvopasture research experiments. Sylvopasture combines pasture and livestock production with trees. The trees we're using are mostly Ashworth Honey Locust trees. They are a variety developed before chemical fertilizers when the USDA was looking for high protein livestock feed options. These honey locust bear seeded pods that can be fed to sheep, goats and chickens. The leaves can be fed to livestock and they are a nitrogen-fixing tree so their roots will nourish the pasture grass growth. Not only that but their leaves are finely cut compound leaves that will not cast a dense shadow and not smother grasses when they fall. We'll be growing some of these full size and also experimenting with coppicing some of them. Coppicing means cutting the tree down and letting suckers grow from the stump to harvest on a schedule determined by the size of growth that best suits your needs.
Our medicinal hedgerow experiment consists of a 6 foot alley pasture between 2 other pastures. This is being planted with herbs that, once they grow enough to stick into the pasture on each side, will be available for grazing by flocks. I'll be doing research on what immune boosting, deworming, etc. herbs are helpful. For now there are gingko and sea buckthorn planted down the center. Both produce palatable nourishing fruit.
Our fencing system also includes some areas that aren't meant to be grazed but are food production areas that the dogs will be able to guard against fruit predators such as bear, raccoon, etc. We have Russian quince, persimmon pear and mulberry so far. We'll be adding some apples and persimmons trees from our nursery beds once it's a good season for transplanting.
We've put honey locust trees into corners of many of our rotational grazing plots. We've protected them with livestock panels that are attached to the corner brace fence posts using eye-hooks and re-bar. You can see it in the photos.
Monday, October 3, 2011

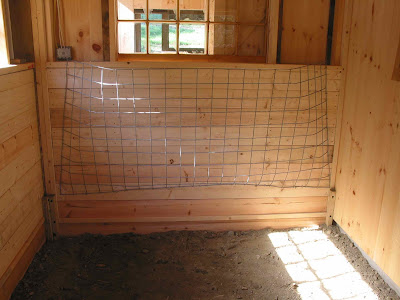

Here is a photo of our hay manger created using a piece of hog panel and 2X4 edges. The 2X4 edges were cut on a table saw to create a place for the wire to get held securely. The 4X4 mesh of the hog panel is perfect in that no one can get their head stuck and it's all rigid enough to be very solid and, we hope, indestructible.
Sunday, October 2, 2011

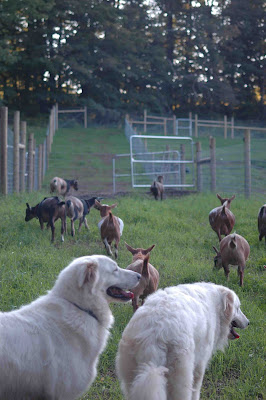

This photo shows a small bit of the fenced corridor around all our rotational pastures. We've taken half of our 10 acres of pastureland, built a barn on it with a center alley and 8 main grazing pastures along with 4 smaller paddocks. The paddocks are used when the animals can't be kept on the grass because it hasn't grown enough, is over-grazed or during winter.
There are separate paddocks for rams, ewes, does and bucks. Each group also has it's own corner of the barn for shelter. Having the whole area surrounded by a corridor that the Maremma dogs can patrol all night makes it possible to keep our livestock protected even if the dogs aren't in with each group.
The center alley and perimeter corridor are both 16 feet wide which allow us to use livestock panels to divide them or block them off at any point. There are SO many gates in our fencing system and I'd have put in more if we could have afforded it. Being able to move animals from one area to another in the easiest way demands a lot of gates.
Maybe someday we'll be able to free range our goats through our 100 acres for at least some walks but I'm not sure how we'd keep the dogs with us and I'd certainly not want to risk our goats and sheep to the local predators.
Saturday, October 1, 2011

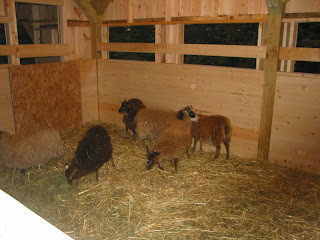

The ewes have arrived!! This was an "L" naming year at Greener Pastures Farm so our girls are named Lorelei, Lola, Laughter in the Rain, Lisette, Lilibeth and Lady of the Lake. Here is a photo of them in their stall. Also note photos of the new barn and fencing. Fergey, our Maremma Livestock Guardian Dog keeps an eye on everything with his sister Vera. They live with the goats but maybe someday will also live with the sheep. At night they will be able to patrol the entire perimeter of the pasture in a fenced corridor so that they can keep predators away from everyone.
